Manual Parking Lock with Padlock
- Electrostatically painted steel, yellow RAL 1023
- 4 kg, folds down to 9 cm
- Fixed with 3 anchors Ø16×90 mm and 3 bolts Ø10×110 mm
- Padlock not included
Complementary products
General features
| Material | Painted Steel |
|---|---|
| Weight | 4 kg |
| Dimensions L X W X H | 38 x 8 x 48 cm |
| Base Dimensions L X W X H | 38 x 8 x 4 cm |
| Folded Dimensions L X W X H | 38 x 55 x 9 cm |
| Color | Yellow (RAL 1023) |
| Mounting System | Dowels Ø16 x 90 mm (x3), Screws Ø10×110 mm (x3) |
| Length | 39 cm |
| Width | 7 cm |
| Height | 48 cm |
Product description

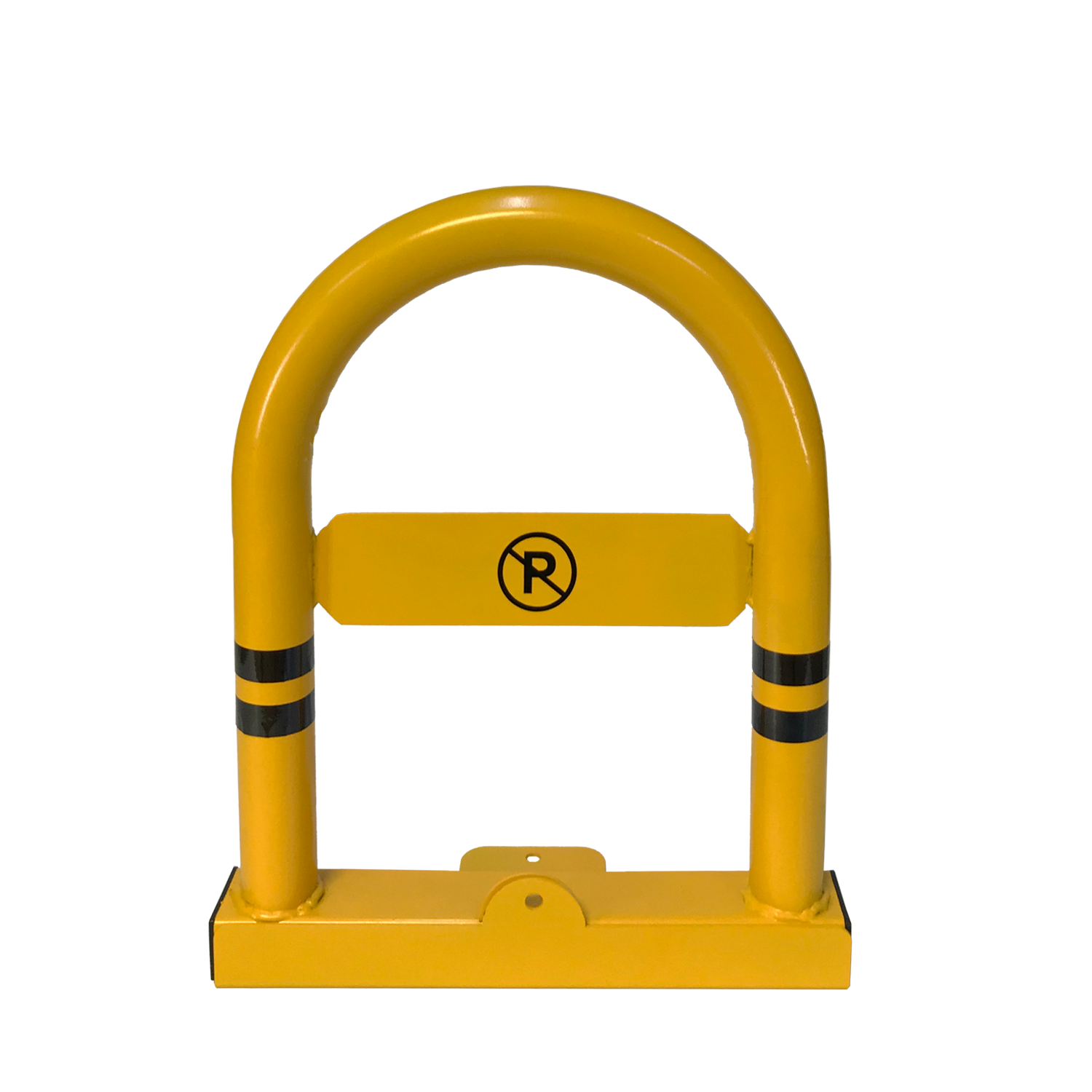

Parking lock with padlock closure – the entry model of the range
This is the simplest parking lock we sell and the most affordable one. It closes with a padlock, and the padlock is your choice: one you already own, or a heavier one if the space is in a courtyard with a lot of foot traffic.
The body is electrostatically painted steel in yellow RAL 1023 and weighs 4 kg. Raised, it stands 48 cm tall and 38 cm wide, so it is plainly visible from the car park lane.
How you use it
When you arrive, unlock the padlock and lay the lock down. Folded it measures 38×55×9 cm, so the car drives over it and you park on top. When you leave, lift it up and lock it again.
What you need to fit it
It fixes to concrete or asphalt at 3 points, with 3 anchors Ø16×90 mm and 3 bolts Ø10×110 mm supplied in the box. You need a hammer drill, a 16 mm bit and a spanner for the bolts.
Padlock not included
If you would rather not buy anything separately, the ATZ M601A has the same construction but comes with a key lock already fitted.
? Frequently asked questions
How is the padlock parking lock used?
When you arrive, unlock the padlock and lay the lock down; folded it measures 38×55×9 cm, so the car drives over it and you park on top. When you leave, lift it up and lock it again.
Is the padlock included?
No, the padlock is your choice: one you already own, or a heavier one if the space is in a courtyard with a lot of foot traffic. The ATZ M601A has the same construction with a key lock already fitted.
What tools do I need to fit it?
A hammer drill, a 16 mm bit and a spanner for the bolts. The 3 anchors Ø16×90 mm and 3 bolts Ø10×110 mm come in the box.
Is it easy to see when raised?
Yes. Raised it stands 48 cm tall and 38 cm wide and is yellow RAL 1023, so it is plainly visible from the car park lane.
What can it be fitted on?
Concrete or asphalt, at 3 points. The body is electrostatically painted steel and weighs 4 kg.
Ordering and delivery
Can I order as a private individual?
Yes. You order directly on the site, as an individual or a company, and pay by card or cash on delivery.
Do I get an invoice?
Yes. Every order comes with a tax invoice, issued to an individual or a company.
Can I buy through SEAP / SICAP?
Yes. Public institutions find us in SICAP as S.C. ATTO REGAL S.R.L. Our company details are on the Purchase through SEAP / SICAP page.
How long does delivery take?
We deliver by courier within 24-48 hours.
Can I return the product?
Yes. As a private individual you can return the product within 14 days of receiving it, as the law provides, and you get your money back within 14 days of telling us. Return shipping is paid by the customer. The full terms are on the Return policy page.
