Parking Wheel Stops
Wheel stops for car parks and garages
A stop fitted at the end of a parking space tells the driver where to stop: the wheel meets it and the car stays clear of the wall, the fence or the pavement. We have six models in two lengths, made of rubber, PPC or metal. All of them come with the fixing anchors and bolts in the box.
60 cm – one for each wheel
You fit two per parking space, in front of the front wheels. They suit garages and individual spaces.
- ATO 6060 – rubber, 60 x 12 x 10 cm, 4.5 kg, three yellow reflective panels, fixed at 3 points.
- ATZ 1560 – PPC, 60 x 15 x 10 cm, only 2 kg, yellow insert with a reflective STOP marking, fixed at 2 points.
180–190 cm – one piece for both wheels
No gap between two stops to set, and the car stops in the right place even if it comes in slightly crooked. These are the usual choice for residential, office and retail car parks.

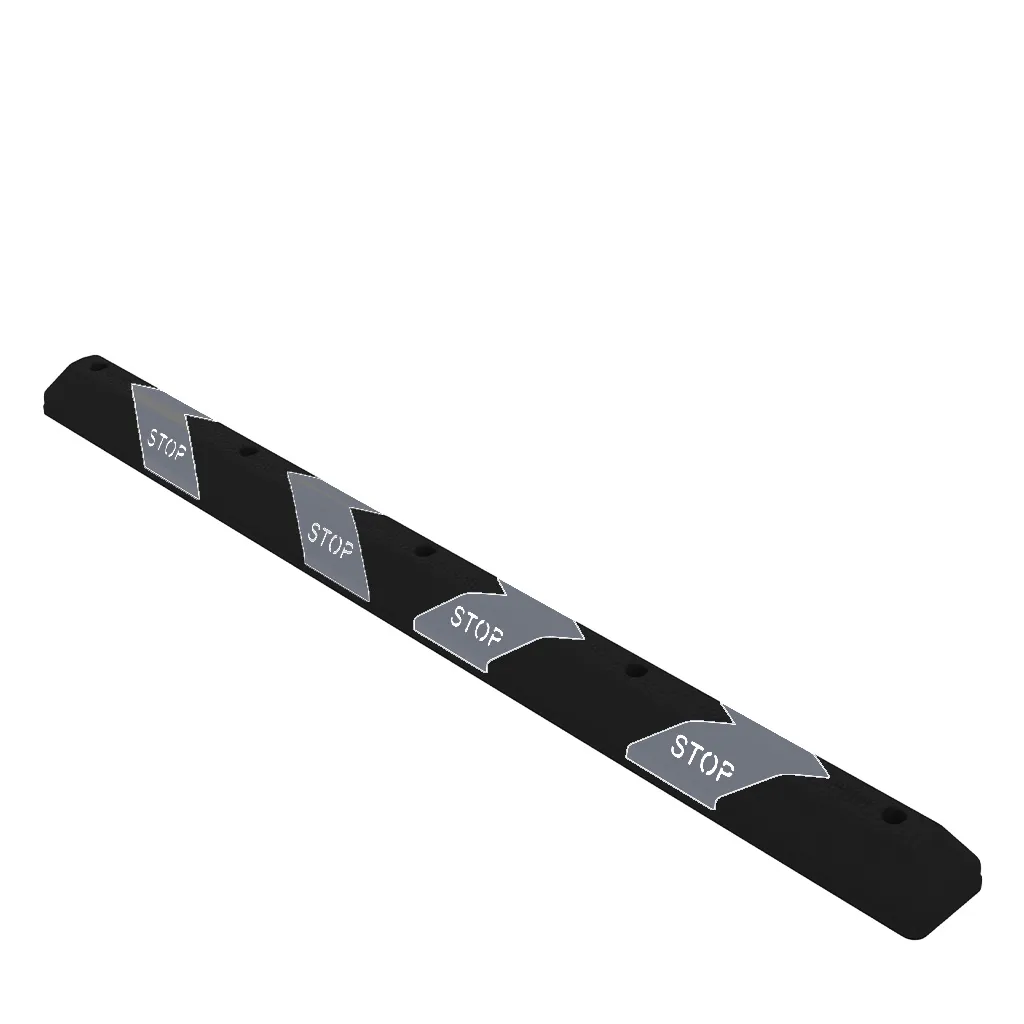

- ATZ R18015 – rubber, 183 x 15 x 12 cm, 16 kg, the heaviest and one of the tallest, fixed at 6 points.
- ATZ 15190 – PPC, 190 x 15 x 10 cm, 6.5 kg, four reflective STOP inserts, fixed at 5 points.
- ATZ 15190R – compound/rubber, 190 x 15 x 10 cm, 9.5 kg, 8 reflectors with a STOP marking, fixed at 5 points.
- ATZ M18012 – yellow RAL 1023 steel tube, 180 x 15 x 12 cm, 5 kg, three white reflective bands, fixed at 6 points.
Choosing the material
Rubber is heavier and sits firmly in place; PPC is much lighter and one person can fit it. The metal stop is the only one painted yellow all over, so it is the easiest to see in daylight. For height you can choose between 10 cm (PPC, compound and the 60 cm rubber stop) and 12 cm (the 183 cm rubber stop and the metal one). If you park a car with a low front bumper, take a 10 cm stop.
Fitting and delivery
All of them fix into concrete or asphalt. You need a hammer drill, a bit that matches the anchors and a spanner for the bolts. We deliver in 1-3 working days.
To reserve a space, have a look at our parking locks. For walls and pillar corners in underground car parks there are wall and corner guards, and the rest of our parking products are in Parking Solutions.
? Frequently asked questions
How many stops do I need for one parking space?
It depends on the length. The 60 cm stops (ATO 6060 and ATZ 1560) catch one wheel, so we recommend 2 per space. The 180-190 cm stops (ATZ R18015, ATZ 15190, ATZ 15190R and ATZ M18012) cover both front wheels, so one per space is enough.
What is in the box for fitting?
The anchors and bolts are included, one of each per hole: 2 on the ATZ 1560, 3 on the ATO 6060, 5 on the ATZ 15190 and ATZ 15190R, 6 on the ATZ R18015 and ATZ M18012. On every model except the ATZ 15190R the anchors are Ø16 x 90 mm and the bolts Ø10 x 110 mm.
How is a parking stop fitted?
Set the stop in position, mark the holes, drill into the concrete or asphalt with a hammer drill, push in the anchors and tighten the bolts. For the Ø16 mm anchors use a 16 mm bit.
How high are the stops?
The ATO 6060, ATZ 1560, ATZ 15190 and ATZ 15190R are 10 cm high. The ATZ R18015 and ATZ M18012 are 12 cm. If your car has a low front bumper, choose a 10 cm model.
What is the difference between rubber, PPC and metal?
Mainly the weight. At 60 cm, the rubber stop weighs 4.5 kg and the PPC one 2 kg. At full length, rubber is 16 kg, compound/rubber 9.5 kg and PPC 6.5 kg. The metal stop weighs 5 kg and is the only one painted yellow, with white reflective bands.
