Elongated Road Stud, PPC, Yellow, 8 Reflectors, 21x9.7 cm
- Elongated road stud in PPC, yellow.
- 21 x 9.7 cm, 2.8 cm high, 170 g.
- 8 reflectors.
- Fixed with 2 screws, included.
Complementary products
General features
| Material | PPC |
|---|---|
| Reflective | 8 Cat's Eye |
| Installation | 2 Screws |
| Color | Yellow |
| Weight | 0,17 kg |
| Length | 21 cm |
| Width | 9,7 cm |
| Height | 2,8 cm |
Product description

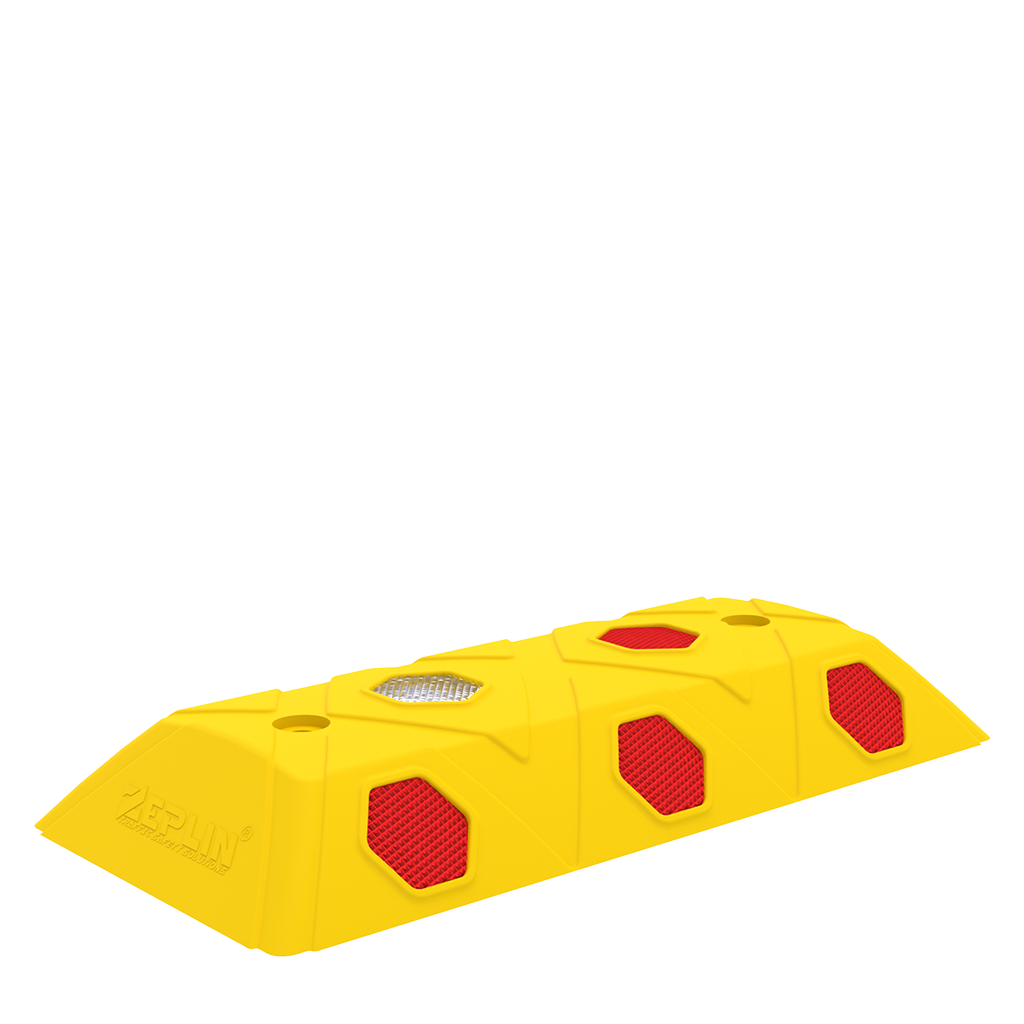

Elongated road stud, yellow, 21 x 9.7 cm
The ATZ 8002 is shaped like a small lane separator: an elongated yellow PPC body, 21 cm long, with sloping sides and 8 reflectors, red on the sides. Laid one after another, the studs form a line that is visible by day and night and that drivers feel if they cross it.
Technical data
- dimensions: 21 x 9.7 cm;
- height: 2.8 cm;
- material: PPC, yellow;
- reflectors: 8 cat's eyes;
- weight: 170 g.
Installation
It is fixed with 2 concrete screws of 7.5 x 80 mm, included, through the two holes on top. Lay the stud with its long side along the line you want to mark.
Where it is used
Between the lanes of a car park ramp, to separate parking bays from the driving aisle, along the edge of a cycle lane or around a loading area. For a line, keep an even gap between studs, for example 1 m.
Round version
For corners and roundabouts, where cars come from several directions, the round ATZ 8001 stud has reflectors all the way round.
? Frequently asked questions
What is the elongated ATZ 8002 stud used for?
For lines: between the lanes of a car park ramp, to separate parking bays from the driving aisle, along the edge of a cycle lane or around a loading area. Laid one after another, the studs form a line that is visible by day and night and that drivers feel if they cross it.
How far apart should I place them?
Keep an even gap between studs, for example 1 m.
How is it installed?
With 2 concrete screws of 7.5 x 80 mm, included, through the two holes on top. Lay the stud with its long side along the line you want to mark.
What size is it?
It is 21 x 9.7 cm, 2.8 cm high and weighs 170 g, in yellow PPC with 8 red cat's eyes on the sides.
What should I use on corners and roundabouts?
The round ATZ 8001 stud, which has reflectors all the way round and shows up from several directions.
Ordering and delivery
Can I order as a private individual?
Yes. You order directly on the site, as an individual or a company, and pay by card or cash on delivery.
Do I get an invoice?
Yes. Every order comes with a tax invoice, issued to an individual or a company.
Can I buy through SEAP / SICAP?
Yes. Public institutions find us in SICAP as S.C. ATTO REGAL S.R.L. Our company details are on the Purchase through SEAP / SICAP page.
How long does delivery take?
We deliver by courier within 24-48 hours.
Can I return the product?
Yes. As a private individual you can return the product within 14 days of receiving it, as the law provides, and you get your money back within 14 days of telling us. Return shipping is paid by the customer. The full terms are on the Return policy page.
