Road Stud, ABS, Yellow, 2 Reflectors, 10.5x10.5 cm
- Square road stud in ABS, yellow.
- 10.5 x 10.5 cm, 2 cm high, 110 g.
- Red and white reflectors on opposite sides.
- Fixed with 2 screws and anchors, included.
Complementary products
General features
| Weight | 0.110 kg |
|---|---|
| Dimensions | 10.5 × 10.5 × 2 cm |
| Material | ABS |
| Color | Yellow |
| Reflective | 2 Cat Eye |
| Installation | 2 Anchors, 2 Screws |
| Length | 10,5 cm |
| Width | 10,5 cm |
| Height | 2 cm |
Product description

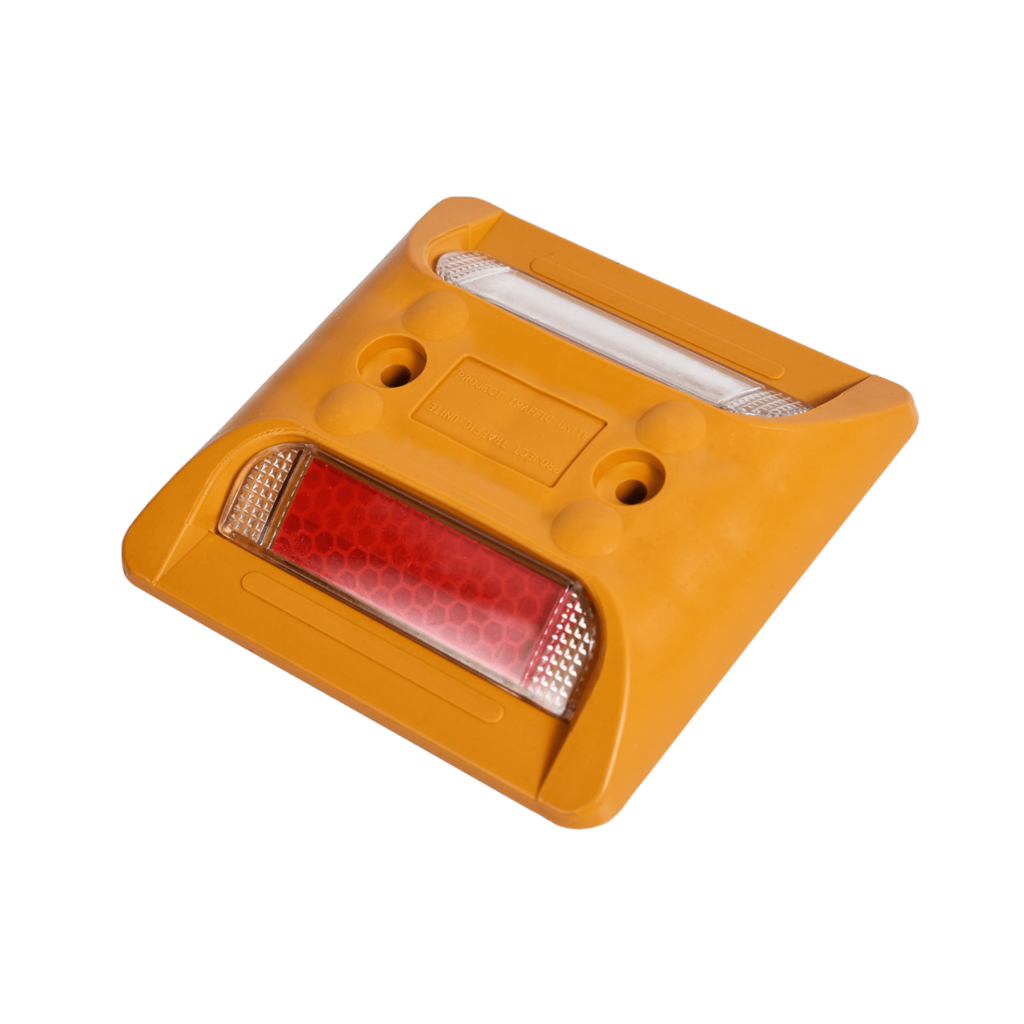

Square road stud, yellow, 10.5 x 10.5 cm
The ATE 12005 is the classic road stud shape: a low, square body in yellow ABS with one reflector on each of two opposite sides: one red and the other white, so the stud shows one colour to traffic from one direction and another to traffic from the other.
Technical data
- dimensions: 10.5 x 10.5 cm;
- height: 2 cm;
- material: ABS, yellow;
- reflectors: 2 cat's eyes, red and white;
- weight: 110 g.
Installation
It is fixed with 2 screws and 7.5 x 80 mm anchors, included, through the holes on top. Fit the stud with the reflectors facing along the direction of travel, so the headlights hit them.
Where it is used
On the centre line of a two-way driveway, along the edge of a ramp, at the entrance to a car park or a company yard. At 2 cm high, it is the lowest screw-fixed stud in the range.
For heavy traffic
If you need a stated load rating, the ABS stud ATT 9007 is rated 10-20 t and the aluminium ATT 9008, 30 t. Both are bonded with epoxy adhesive.
? Frequently asked questions
Where is the ATE 12005 stud used?
On the centre line of a two-way driveway, along the edge of a ramp, at the entrance to a car park or a company yard.
Why are its reflectors different colours?
It has one reflector on each of two opposite sides, one red and the other white, so the stud shows one colour to traffic from one direction and another to traffic from the other.
How is it installed?
It is fixed with 2 screws and 7.5 x 80 mm anchors, included, through the holes on top.
How tall is it?
It is 2 cm high, the lowest screw-fixed stud in the range. It measures 10.5 x 10.5 cm, is made of yellow ABS and weighs 110 g.
