Red D-200 mm LED Light for V11 Mobile Traffic Light, Spare Part
- Red LED light, D-200 mm.
- Spare part for the V11 mobile traffic light.
- 20 x 20 x 10 cm, 1 kg.
Complementary products
General features
| Type | LED module |
|---|---|
| Light colour | Red |
| Diameter | D-200 mm |
| Position in the signal head | top |
| Compatible with | V11-20, V11-21 |
| Fault indication | code on the control unit display; the light switches to flashing yellow |
| Weight | 1 kg |
| Length | 20 cm |
| Width | 20 cm |
| Height | 10 cm |
Product description
Red D-200 mm LED light for the V11 mobile traffic light
The red light is the most important one in a roadworks signal: it stops one direction so the other can pass. If it fails, the light can no longer be used safely. The V11-D200-R is the red D-200 mm LED light, a spare part for the V11 mobile traffic light.
What it replaces
The red light in the head of a V11 traffic light, in the V11-20 and V11-21 sets. You replace only the faulty light, not the whole traffic light.
How you know it has failed
The control unit checks the lamps all the time. When the red light fails, the display shows its code and the traffic light switches itself to flashing yellow, so no direction is left without a red. The normal cycle does not resume until the light is replaced.
What it looks like

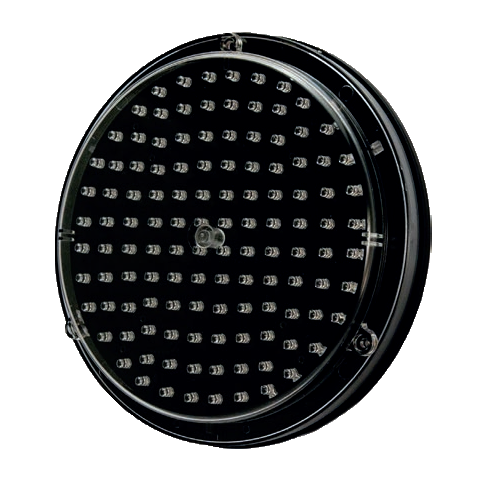

A round module with a black body and a clear lens, with LEDs across the whole surface. The colour only shows when the light is on. When fitted, the module goes in the top slot of the signal head.
Technical data
- D-200 mm diameter;
- 20 x 20 x 10 cm;
- 1 kg.
The other lights
For the same traffic light there is the yellow V11-D200-Y and the green V11-D200-G. For a control fault, see the V11-CONTROL control unit.
? Frequently asked questions
Which traffic lights does the V11-D200-R red light fit?
How do I know the red light has failed?
The control unit shows the red light's code and the traffic light switches itself to flashing yellow, so no direction is left without a red. The normal cycle resumes once the light is replaced.
Which position does the red module go in?
The red module fits in the top slot of the signal head. Below it come the yellow light in the middle and the green light at the bottom.
The lens is clear. Is that normal for the red light?
Yes. The module has a black body, a clear lens and LEDs across the whole surface, and the red colour only shows when the light is on.
What size is the module?
It has a D-200 mm diameter, measures 20 x 20 x 10 cm and weighs 1 kg.
Which part do I need if the fault is in the traffic light control, not the light?
For a control fault, the spare part is the V11-CONTROL control unit.
