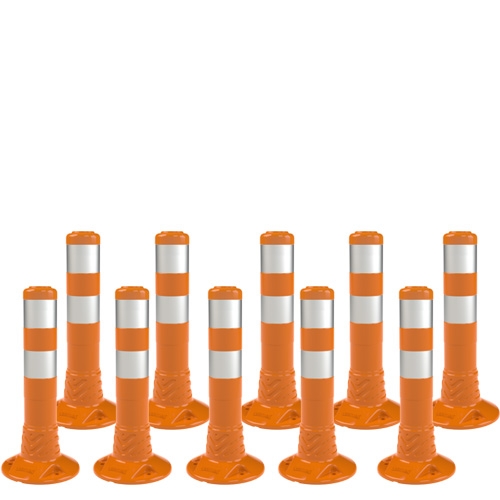

Set of 10 Flexible TPU Delineator Posts, 45 cm, Orange
- 10 ATZ 8045 delineator posts, orange TPU.
- 45 cm, Ø8 cm post, Ø20 cm base.
- 2 metallised reflective bands per post.
- 3 plugs and 3 screws for each post.
Complementary products
General features
| Material | TPU |
|---|---|
| Size (Post) | Ø8 cm |
| Size (Base) | Ø20 cm |
| Base Shape | Round |
| Reflective | Metalized |
| Weight | 9,5 kg |
| Height | 45 cm |
Product description
Set of 10 flexible TPU delineator posts, 45 cm
A single delineator post separates nothing; a cycle lane or the edge of a car park needs a whole row. The ATS 8045-10 set holds 10 ATZ 8045 posts, enough for a 9 m line with a post every metre or a 45 m line with a post every 5 m.
The post
- TPU (thermoplastic polyurethane), orange RAL 2009, UV-protected;
- 45 cm tall, Ø8 cm post, Ø20 cm round base;
- 2 metallised reflective bands.
Flexible
When a car drives over it, the TPU post bends and springs back, so neither the post nor the car is damaged. At 45 cm, it can be seen from the car but does not block the view.
Installation
Each post comes with 3 Ø16 x 90 mm plugs and 3 Ø10 x 110 mm screws: 30 plugs and 30 screws in the whole set. Drill 3 holes in the asphalt, fit the plugs and tighten the base down.
Where it is used
On cycle lanes, to separate lanes, on access corridors, around pedestrian areas and as anti-parking posts. Taller: the ATS 8075 (75 cm) and the ATS 80100 (100 cm). The budget PE version, with 14 posts, is the ATS 8045E-14.
? Frequently asked questions
Where are the 45 cm delineator posts used?
On cycle lanes, to separate lanes, on access corridors, around pedestrian areas and as anti-parking posts. At 45 cm they can be seen from the car but do not block the view.
How long a line do the 10 posts cover?
A 9 m line with a post every metre or a 45 m line with a post every 5 m.
Is the car or the post damaged if someone drives over it?
No. The TPU post bends and springs back, so neither the post nor the car is damaged.
What fixings are included and how is it installed?
Each post comes with 3 Ø16 x 90 mm plugs and 3 Ø10 x 110 mm screws, 30 plugs and 30 screws in the whole set. Drill 3 holes in the asphalt, fit the plugs and tighten the base down.
What material and bands does it have?
Orange RAL 2009 TPU (thermoplastic polyurethane), UV-protected, a Ø8 cm post on a Ø20 cm round base, with 2 metallised reflective bands.
What other versions are there?
Taller: the ATS 8075 (75 cm) and the ATS 80100 (100 cm). The budget PE version, with 14 posts of 45 cm, is the ATS 8045E-14.
