Tactile Guidance Tile, Yellow, 30x30x0.8 cm
- Material: TPU (Poliuretan termoplastic)
- Sistem De Prindere: Epoxy (nu este inclus).
- Culoare: Galben (RAL 1003)
- Greutate: 0.35 kg
Complementary products
General features
| Material | TPU (Thermoplastic polyurethane) |
|---|---|
| Weight | 0.35 kg |
| Dimensions L X W X H | 30 x 30 x 0.8 cm |
| Color | Yellow (RAL 1003) |
| Mounting System | Epoxy (not included). |
| Length | 30 cm |
| Width | 30 cm |
| Height | 0,8 cm |
Product description

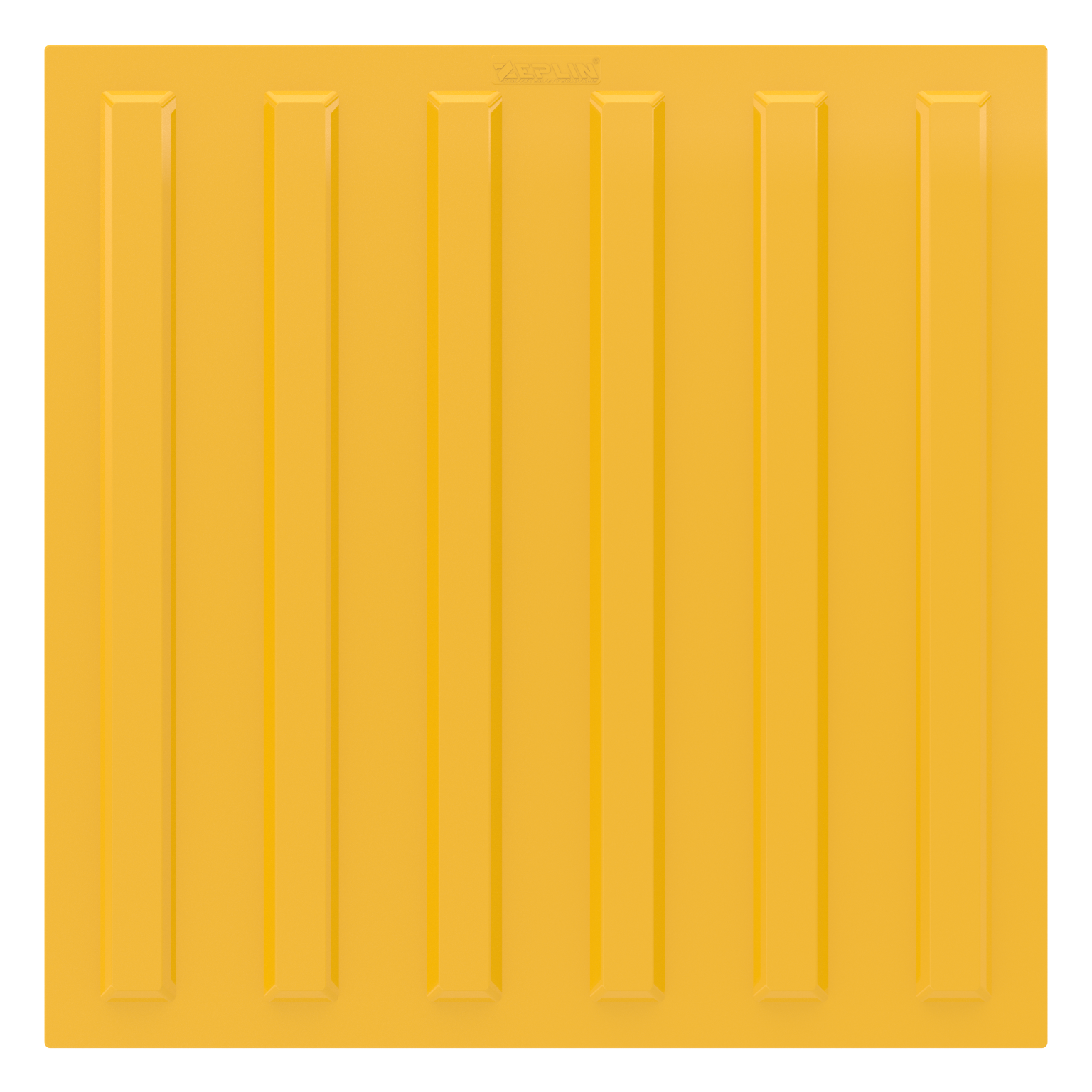

Yellow tactile guidance tile, 30x30 cm
The 30 x 30 cm format is the smallest in our range and fits easily into paving laid in slabs of the same size. The raised parallel ribs show the direction: a blind person follows them underfoot or with a white cane.
Material and size
TPU (thermoplastic polyurethane), 30 x 30 cm, 0.8 cm thick, yellow RAL 1003, with a non-slip surface.
How many tiles
11.1 tiles fit in 1 m². A 10 m route, 30 cm wide, takes 34 tiles (33.3, rounded up); 20 m takes 67.
Installation
The tile is bonded with epoxy adhesive, which is not included. Lay the tiles one after another with the ribs in the same direction, so the route is unbroken.
Where it goes
On pavements, at public transport stops, at the entrances of public buildings and in stations. The route ends in a warning area, for which there is the ATZ 9004 in the same format, with raised domes. For light-coloured floors, choose the black version, the ATZ 9003-BK.
