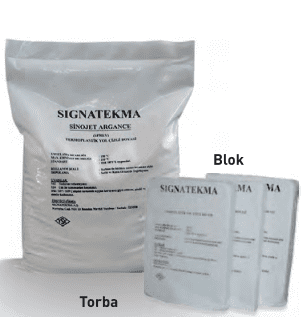

Hot-Applied Thermoplastic Road Marking Material, White (RAL 9016), 20 kg
- White hot-applied thermoplastic (RAL 9016).
- 20 kg; 4 kg/m² at 2 mm thickness.
- Dries in 2-4 minutes, no volatile compounds.
- Luminance factor LF6 (β ≥ 0.80).
Complementary products
General features
| Type | Hot-applied thermoplastic road marking material |
|---|---|
| Colour | White (RAL 9016) |
| Weight | 20 kg |
| Density | 2.00 ± 0.1 g/ml |
| Softening point | ≥ 95 °C |
| Application temperature | 180-210 °C (melted) |
| Luminance factor | LF6, β ≥ 0.80 |
| UV ageing | UV1 |
| Drying time | 2-4 min (10 °C, max. 80% humidity) |
| Consumption | 4 kg/m² at 2 mm thickness; 6 kg/m² at 3 mm; glass beads: 400 g/m² |
| Application | Melter and application machine with a material gun and a glass bead gun |
| Application conditions | Maximum humidity 80% |
| Volatile compounds | No volatile components |
Product description
White thermoplastic for road markings, RAL 9016, 20 kg
On high-traffic roads, markings have to last longer than a coat of paint. The ATA 4020 is a white thermoplastic material: it is melted at 180-210 °C and machine-applied in a 2-3 mm layer, several times thicker than acrylic paint. It is used on motorways, main roads and major city arteries.
Quick drying
The material sets by cooling, not by a solvent evaporating, so it is ready in 2-4 minutes at 10 °C. The road reopens almost straight away, and the product contains no volatile compounds.
Consumption
4 kg/m² at 2 mm thickness and 6 kg/m² at 3 mm. A 20 kg pack therefore covers about 5 m² or 3.3 m² respectively. ATP AC90 glass beads are applied straight after, about 400 g/m².
Equipment
You need a melter and an application machine with one gun for the material and one for the beads. Humidity must be 80% at most.
Technical data
- density 2.00 ± 0.1 g/ml, softening point at least 95 °C;
- luminance factor LF6, β ≥ 0.80;
- UV ageing class UV1.
Other colours
? Frequently asked questions
Where is the ATA 4020 white thermoplastic used?
On motorways, main roads and major city arteries, where markings have to last longer than a coat of paint. It is applied in a 2-3 mm layer, several times thicker than acrylic paint.
How soon can the road reopen?
The material sets by cooling, not by a solvent evaporating, and is ready in 2-4 minutes at 10 °C. The road reopens almost straight away.
How far does a 20 kg pack go?
At 2 mm thickness consumption is 4 kg/m², so about 5 m²; at 3 mm it is 6 kg/m², so about 3.3 m².
What equipment is needed?
A melter, in which the material is melted at 180-210 °C, and an application machine with one gun for the material and one for the beads. Humidity must be 80% at most.
How does the marking become retroreflective?
Glass beads are applied straight after the thermoplastic, about 400 g/m².
Ordering and delivery
Can I order as a private individual?
Yes. You order directly on the site, as an individual or a company, and pay by card or cash on delivery.
Do I get an invoice?
Yes. Every order comes with a tax invoice, issued to an individual or a company.
Can I buy through SEAP / SICAP?
Yes. Public institutions find us in SICAP as S.C. ATTO REGAL S.R.L. Our company details are on the Purchase through SEAP / SICAP page.
How long does delivery take?
We deliver by courier within 24-48 hours.
Can I return the product?
Yes. As a private individual you can return the product within 14 days of receiving it, as the law provides, and you get your money back within 14 days of telling us. Return shipping is paid by the customer. The full terms are on the Return policy page.
