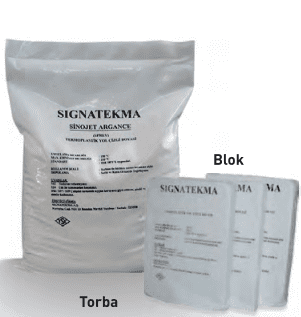

Hot-Applied Thermoplastic Road Marking Material, Yellow (RAL 1023), 20 kg
- Yellow hot-applied thermoplastic (RAL 1023).
- 20 kg; about 5 m² at 2 mm thickness.
- Melted at 180-210 °C, machine-applied.
- Ready for traffic in 2-4 minutes.
Complementary products
General features
| Type | Hot-applied thermoplastic road marking material |
|---|---|
| Colour | Yellow (RAL 1023) |
| Weight | 20 kg |
| Density | 2.00 ± 0.1 g/ml |
| Softening point | ≥ 95 °C |
| Application temperature | 180-210 °C (melted) |
| UV ageing | UV1 |
| Drying time | 2-4 min (10 °C, max. 80% humidity) |
| Consumption | 4 kg/m² at 2 mm thickness; 6 kg/m² at 3 mm; glass beads: 400 g/m² |
| Application | Melter and application machine with a material gun and a glass bead gun |
| Application conditions | Maximum humidity 80% |
| Volatile compounds | No volatile components |
Product description
Yellow thermoplastic for road markings, RAL 1023, 20 kg
Yellow is used for markings that must stand apart from the white ones: temporary markings at roadworks, no-stopping zones, bus stops. When they have to withstand heavy traffic for a long time, they are made in thermoplastic. The ATA 4120 is a yellow RAL 1023 thermoplastic that melts at 180-210 °C and is hot-applied by machine.
How it is applied
The material is heated in a melter and applied with a machine that has one gun for the thermoplastic and one for the glass beads. The layer is 2-3 mm, and humidity must be 80% at most. It sets by cooling in 2-4 minutes at 10 °C.
Consumption
A 2 mm layer takes 4 kg/m², and a 3 mm layer 6 kg/m². With 20 kg you cover about 5 m² at 2 mm. ATP AC90 beads are dropped on straight away, about 400 g/m².
Technical data
- density 2.00 ± 0.1 g/ml;
- softening point of at least 95 °C, so it does not soften on hot summer asphalt;
- UV ageing class UV1;
- no volatile compounds.
Other colours
? Frequently asked questions
Which markings is the ATA 4120 yellow thermoplastic used for?
Markings that must stand apart from the white ones: temporary markings at roadworks, no-stopping zones, bus stops. Thermoplastic is chosen when they have to withstand heavy traffic for a long time.
Does it soften on hot summer asphalt?
No, its softening point is at least 95 °C.
How is it applied?
The material is heated in a melter to 180-210 °C and applied with a machine that has one gun for the thermoplastic and one for the glass beads. The layer is 2-3 mm, humidity must be 80% at most, and it sets by cooling in 2-4 minutes at 10 °C.
How far does 20 kg go?
A 2 mm layer takes 4 kg/m², so 20 kg covers about 5 m². At 3 mm consumption is 6 kg/m².
How many glass beads are needed?
The beads are dropped on straight after application, about 400 g/m².
