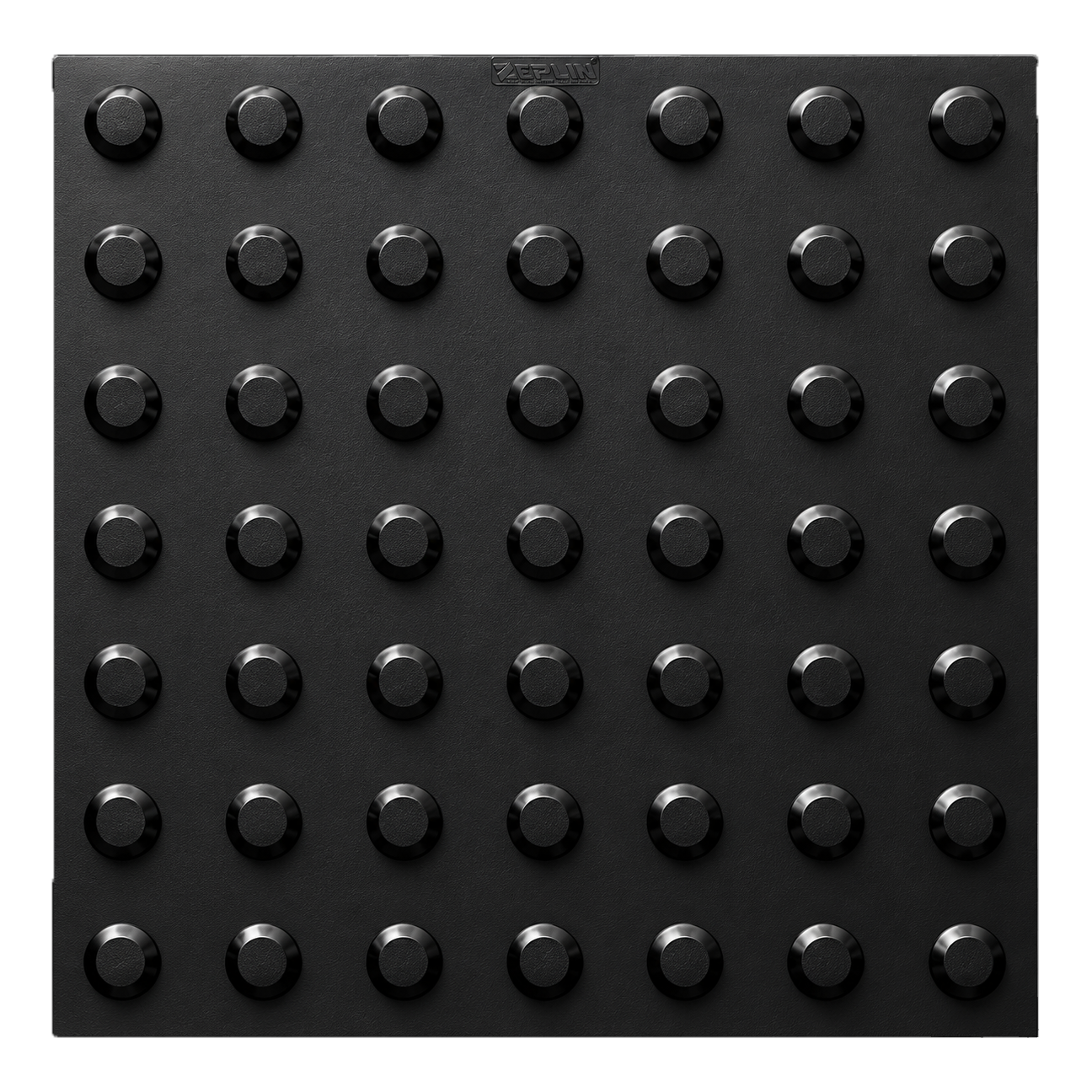

Tactile Warning Tile, Black, 40x40x0.8 cm
- Tactile warning tile, black RAL 9017.
- Raised domes, non-slip surface.
- TPU, 40 x 40 x 0.8 cm, 0.55 kg.
- Installed with epoxy adhesive (not included).
Complementary products
General features
| Material | TPU (Thermoplastic polyurethane) |
|---|---|
| Weight | 0.55 kg |
| Dimensions L X W X H | 40 x 40 x 0.8 cm |
| Color | Black (RAL 9017) |
| Mounting System | Epoxy (not included). |
| Length | 40 cm |
| Width | 40 cm |
| Height | 0,8 cm |
Product description
Black tactile warning tile, 40x40 cm
On white tiles or light-coloured stone, a yellow tile gets lost. That is where the ATZ 9006-BK helps: the warning tile with raised domes in black RAL 9017, which contrasts strongly with a light floor.
What it signals
The domes mark a place to stop: before a staircase, a pedestrian crossing or the edge of a platform. Anyone walking with a white cane feels them at once, and they feel different from the ribs of the guidance tiles.
Technical data
40 x 40 cm, 0.8 cm thick, 0.55 kg, made of TPU (thermoplastic polyurethane), with a non-slip surface.
Installation and quantities
It is bonded with epoxy adhesive, bought separately. In front of a staircase 1.2 m wide, one row of tiles 40 cm deep means 3 tiles; two rows, 80 cm deep, mean 6. For one square metre, allow 7 tiles.
Goes with
The ATZ 9005-BK, the black guidance tile in the same format, for the route leading to the warning area. In yellow, the same warning tile is the ATZ 9006.
? Frequently asked questions
When is the black warning tile used?
On white tiles or light-coloured stone, where a yellow tile gets lost. Black RAL 9017 contrasts strongly with a light floor.
What do the domes signal?
A place to stop: before a staircase, a pedestrian crossing or the edge of a platform. Anyone walking with a white cane feels them at once, and they feel different from the ribs of the guidance tiles.
How many tiles go in front of a 1.2 m staircase?
One row 40 cm deep means 3 tiles, and two rows, 80 cm deep, mean 6. For one square metre, allow 7 tiles.
What is it made of and how is it installed?
TPU (thermoplastic polyurethane), 40 x 40 cm, 0.8 cm thick and 0.55 kg, with a non-slip surface. It is bonded with epoxy adhesive, bought separately.
Which guidance tile does it go with?
The ATZ 9005-BK, the black guidance tile in the same format. In yellow, the same warning tile is the ATZ 9006.
Ordering and delivery
Can I order as a private individual?
Yes. You order directly on the site, as an individual or a company, and pay by card or cash on delivery.
Do I get an invoice?
Yes. Every order comes with a tax invoice, issued to an individual or a company.
Can I buy through SEAP / SICAP?
Yes. Public institutions find us in SICAP as S.C. ATTO REGAL S.R.L. Our company details are on the Purchase through SEAP / SICAP page.
How long does delivery take?
We deliver by courier within 24-48 hours.
Can I return the product?
Yes. As a private individual you can return the product within 14 days of receiving it, as the law provides, and you get your money back within 14 days of telling us. Return shipping is paid by the customer. The full terms are on the Return policy page.
