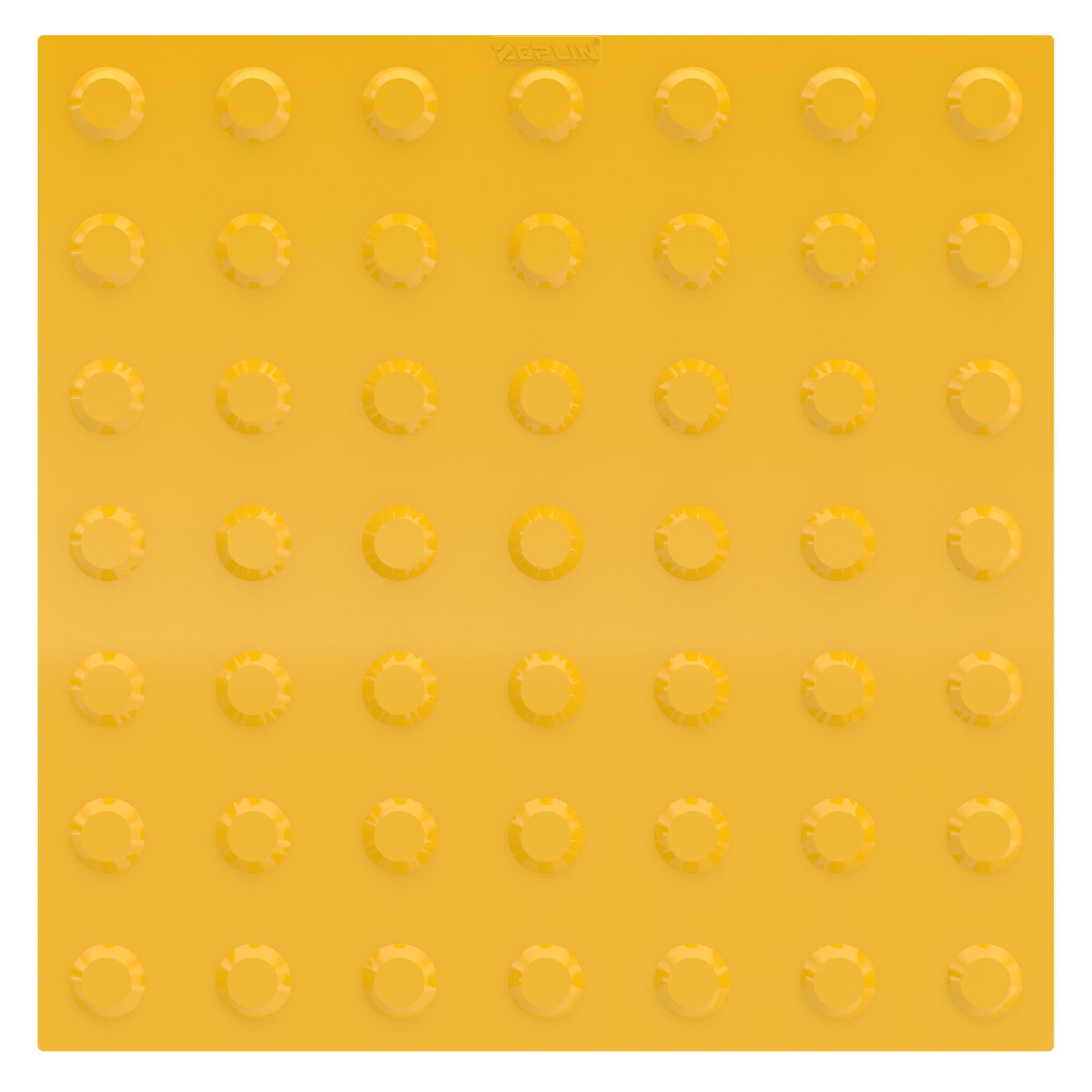

Tactile Warning Tile, Yellow, 40x40x0.8 cm
- Tactile warning tile with raised domes.
- TPU, 40 x 40 x 0.8 cm, 0.55 kg, yellow RAL 1003.
- Non-slip surface.
- Fixed with epoxy adhesive (not included).
Complementary products
General features
| Material | TPU (Thermoplastic polyurethane) |
|---|---|
| Weight | 0.55 kg |
| Dimensions L X W X H | 40 x 40 x 0.8 cm |
| Color | Yellow (RAL 1003) |
| Mounting System | Epoxy (not included). |
| Length | 40 cm |
| Width | 40 cm |
| Height | 0,8 cm |
Product description
Yellow tactile warning tile, 40x40 cm
The raised domes, set in regular rows, tell a blind person to stop: ahead there is a pedestrian crossing, a tram line, the top of a staircase or the edge of a platform. The tile is easy to feel underfoot and with a white cane, and the yellow makes it visible to partially sighted people.
Features
- TPU (thermoplastic polyurethane), 40 x 40 x 0.8 cm;
- 0.55 kg, 100 g lighter than the ATZ 9005 guidance tile;
- yellow RAL 1003;
- non-slip surface.
Coverage
For 1 m² you need 7 tiles (6.25, rounded up). A warning strip 3 m long and 40 cm deep in front of a pedestrian crossing takes 8 tiles.
Installation
It is bonded with epoxy adhesive, which is not included. At 0.8 cm it is as thick as the guidance tiles in the range, so the warning area and the route sit side by side at the same level.
Black version and other formats
On light-coloured floors, use the ATZ 9006-BK, the same tile in black. In the smaller 30 x 30 cm format, the yellow warning tile is the ATZ 9004.
? Frequently asked questions
Where is the tactile warning tile installed?
Wherever a blind person needs to stop: before a pedestrian crossing or a tram line, at the top of a staircase or at the edge of a platform.
How does it differ from the guidance tile?
The warning tile has raised domes set in regular rows that signal a stop. The guidance tile, the ATZ 9005, has parallel ribs that show the direction of travel.
How many tiles do I need for a pedestrian crossing?
A warning strip 3 m long and 40 cm deep takes 8 tiles. For 1 m², allow 7 tiles (6.25, rounded up).
Is the adhesive included?
No. The tile is bonded with epoxy adhesive, bought separately.
Does it sit level with the guidance tiles?
Yes. At 0.8 cm it is as thick as the guidance tiles in the range, so the warning area and the route sit side by side at the same level.
When do I choose the black version or the smaller format?
On light-coloured floors, use the ATZ 9006-BK, the same tile in black. In the 30 x 30 cm format, the yellow warning tile is the ATZ 9004.
Ordering and delivery
Can I order as a private individual?
Yes. You order directly on the site, as an individual or a company, and pay by card or cash on delivery.
Do I get an invoice?
Yes. Every order comes with a tax invoice, issued to an individual or a company.
Can I buy through SEAP / SICAP?
Yes. Public institutions find us in SICAP as S.C. ATTO REGAL S.R.L. Our company details are on the Purchase through SEAP / SICAP page.
How long does delivery take?
We deliver by courier within 24-48 hours.
Can I return the product?
Yes. As a private individual you can return the product within 14 days of receiving it, as the law provides, and you get your money back within 14 days of telling us. Return shipping is paid by the customer. The full terms are on the Return policy page.
