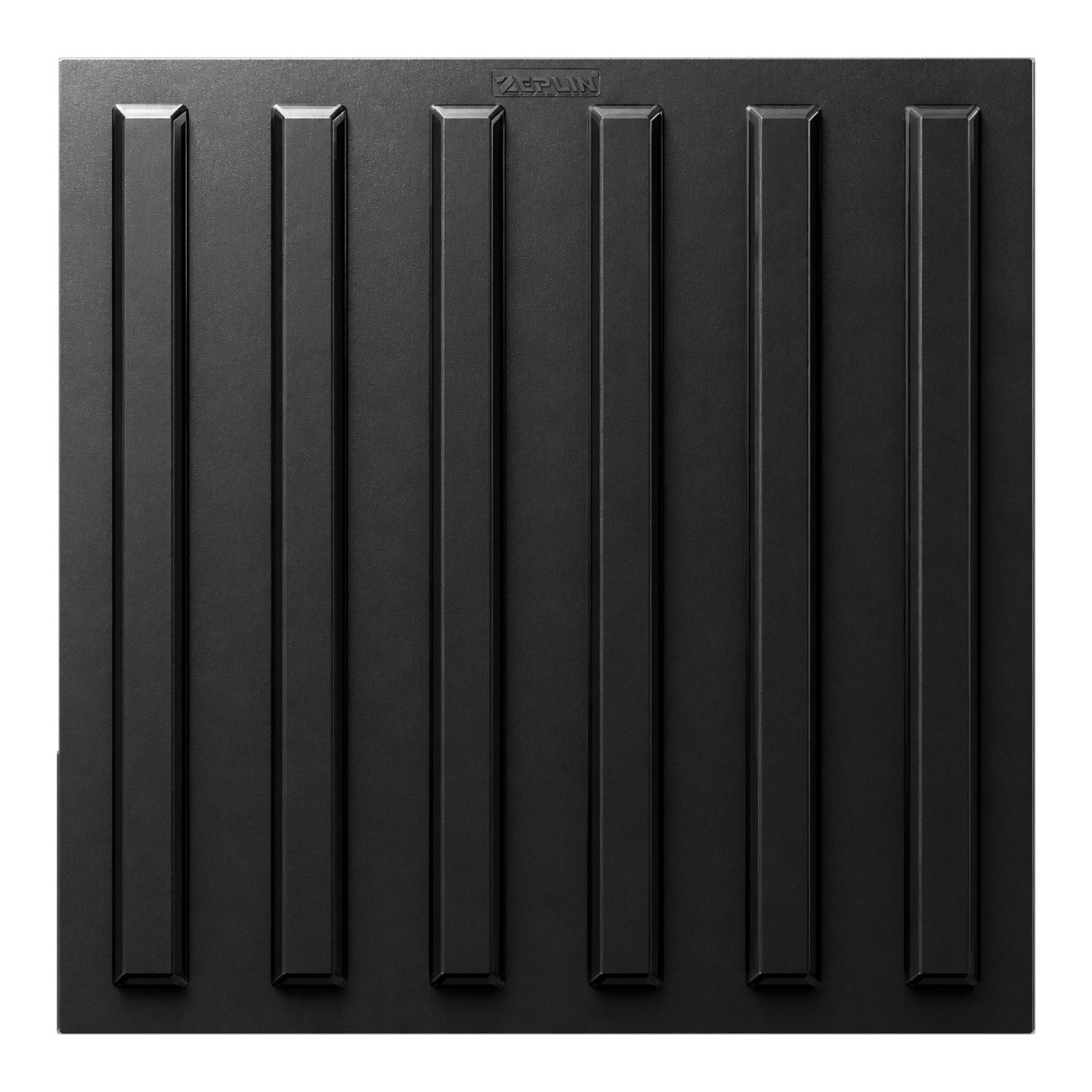

Tactile Guidance Tile, Black, 40x40x0.8 cm
- Tactile guidance tile, black RAL 9017.
- TPU, 40 x 40 x 0.8 cm, 0.65 kg.
- Raised parallel ribs, non-slip surface.
- Installed with epoxy adhesive (not included).
Complementary products
General features
| Material | TPU (Thermoplastic polyurethane) |
|---|---|
| Weight | 0.65 kg |
| Dimensions L X W X H | 40 x 40 x 0.8 cm |
| Color | Black (RAL 9017) |
| Mounting System | Epoxy (not included). |
| Length | 40 cm |
| Width | 40 cm |
| Height | 0,8 cm |
Product description
Black tactile guidance tile, 40x40 cm
This is the same guidance tile as the ATZ 9005, in black RAL 9017. It is chosen where yellow would not stand out: on white or beige tiles, or on light-coloured stone. The contrast between tile and floor helps partially sighted people find the route.
Technical data
TPU (thermoplastic polyurethane), 40 x 40 cm, 0.8 cm thick, 0.65 kg. The surface is non-slip, and the raised parallel ribs show the direction of travel to anyone walking with a white cane.
How many tiles you need
One tile covers 0.16 m², so 6.25 tiles fit in a square metre. A guidance route 40 cm wide and 15 m long takes 38 tiles (37.5, rounded up).
Installation
It is bonded with epoxy adhesive, bought separately. Lay the tiles one after another with the ribs in the same direction, so the line is continuous.
Where it is used
In the halls of public buildings, in stations and airports, at public transport stops and on pavements. For stopping points, also in black, there is the ATZ 9006-BK warning tile with domes.
? Frequently asked questions
When do I choose the black guidance tile over the yellow one?
Where yellow would not stand out: on white or beige tiles, or on light-coloured stone. The contrast between tile and floor helps partially sighted people find the route.
How many tiles does a 15 m route take?
A route 40 cm wide and 15 m long takes 38 tiles (37.5, rounded up). One tile covers 0.16 m².
How are the tiles laid?
One after another, with the ribs in the same direction, so the line is continuous. They are bonded with epoxy adhesive, bought separately.
What is it made of and how much does it weigh?
TPU (thermoplastic polyurethane), 40 x 40 cm, 0.8 cm thick, 0.65 kg, with a non-slip surface.
What do I use in black for stopping points?
The ATZ 9006-BK, the warning tile with domes, in the same format.
Ordering and delivery
Can I order as a private individual?
Yes. You order directly on the site, as an individual or a company, and pay by card or cash on delivery.
Do I get an invoice?
Yes. Every order comes with a tax invoice, issued to an individual or a company.
Can I buy through SEAP / SICAP?
Yes. Public institutions find us in SICAP as S.C. ATTO REGAL S.R.L. Our company details are on the Purchase through SEAP / SICAP page.
How long does delivery take?
We deliver by courier within 24-48 hours.
Can I return the product?
Yes. As a private individual you can return the product within 14 days of receiving it, as the law provides, and you get your money back within 14 days of telling us. Return shipping is paid by the customer. The full terms are on the Return policy page.
