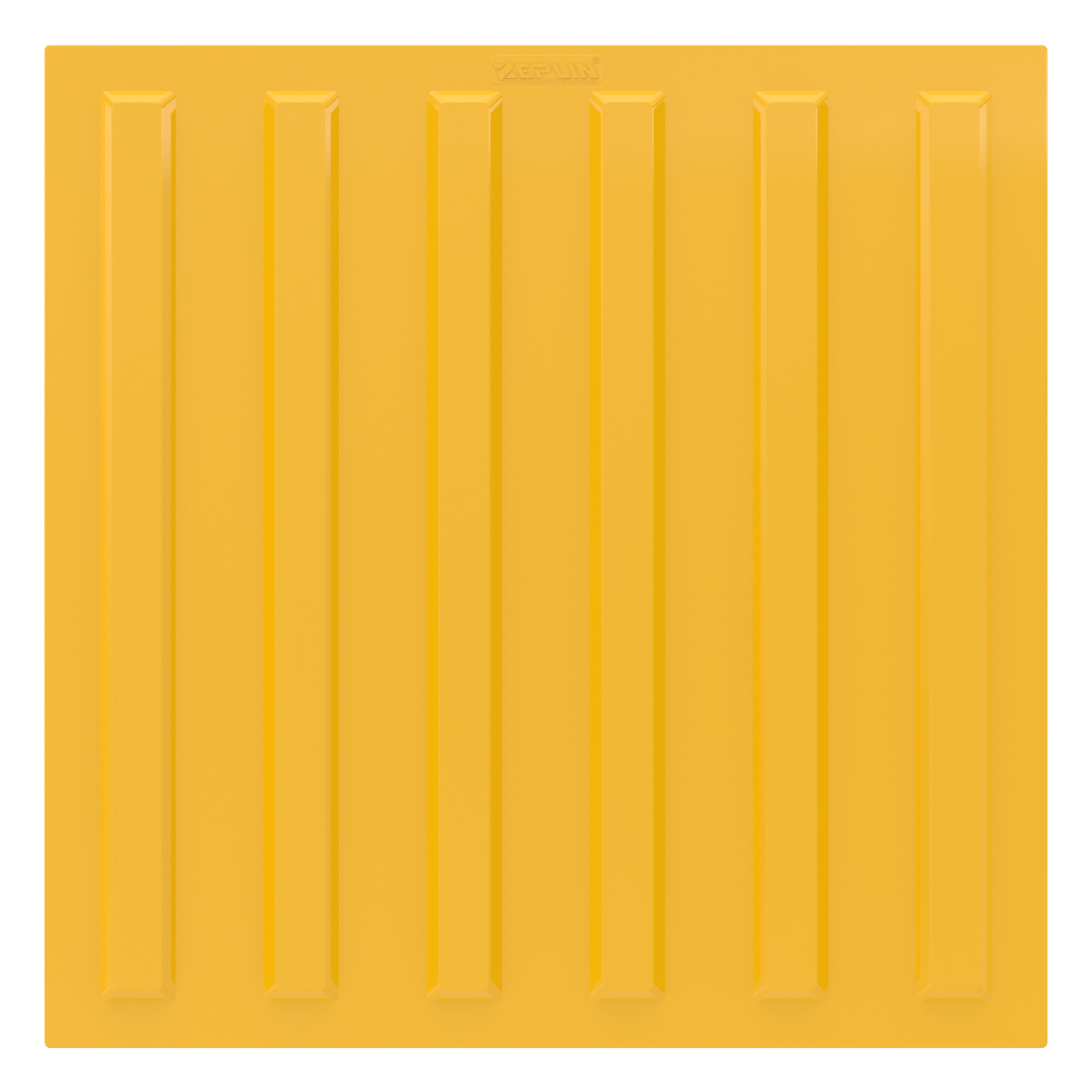

Tactile Guidance Tile, Yellow, 40x40x0.8 cm
- Tactile guidance tile with raised parallel ribs.
- TPU, 40 x 40 x 0.8 cm, 0.65 kg, yellow RAL 1003.
- Non-slip surface.
- Fixed with epoxy adhesive (not included).
Complementary products
General features
| Material | TPU (Thermoplastic polyurethane) |
|---|---|
| Weight | 0.65 kg |
| Dimensions L X W X H | 40 x 40 x 0.8 cm |
| Color | Yellow (RAL 1003) |
| Mounting System | Epoxy (not included). |
| Length | 40 cm |
| Width | 40 cm |
| Height | 0,8 cm |
Product description
Yellow tactile guidance tile, 40x40 cm
The raised parallel ribs on this tile show the direction of travel. A blind person feels them underfoot or with a white cane and follows them along an obstacle-free route: from a building's gate to its entrance, along a platform, across a station concourse.
What you get
- a TPU (thermoplastic polyurethane) tile, 40 x 40 cm and 0.8 cm thick;
- 0.65 kg;
- yellow RAL 1003;
- a non-slip surface.
How it is installed
The tile is bonded to the floor with epoxy adhesive, which is not included. The ribs point in the direction the person needs to walk. A 10 m route, 40 cm wide, takes 25 tiles.
Why yellow
For partially sighted people, the contrast between the tile and the floor around it matters. Yellow stands out on grey paving, asphalt or dark tiles. On a light floor, the black version, the ATZ 9005-BK, shows up better.
Together with warning tiles
A guidance route usually leads to a warning area before a pedestrian crossing, a staircase or the edge of a platform. For that area, in the same format, there is the ATZ 9006 with raised domes. If you need smaller tiles, the ATZ 9003 is 30 x 30 cm.
? Frequently asked questions
How does the guidance tile help a blind person?
The raised parallel ribs show the direction of travel. The person feels them underfoot or with a white cane and follows them along an obstacle-free route, for example from a building's gate to its entrance.
Which way do the ribs go when fitting?
In the direction the person needs to walk. The tile is bonded to the floor with epoxy adhesive, which is not included.
How many tiles do I need for a 10 m route?
A 10 m route, 40 cm wide, takes 25 tiles.
Which floors does yellow show up well on?
On grey paving, asphalt or dark tiles. On a light floor, the black version, the ATZ 9005-BK, shows up better.
Which tile goes at the end of the route?
A guidance route usually leads to a warning area before a pedestrian crossing, a staircase or the edge of a platform. For that area, in the same format, there is the ATZ 9006 with raised domes.
Is there a smaller format?
Yes, the ATZ 9003 is 30 x 30 cm.
Ordering and delivery
Can I order as a private individual?
Yes. You order directly on the site, as an individual or a company, and pay by card or cash on delivery.
Do I get an invoice?
Yes. Every order comes with a tax invoice, issued to an individual or a company.
Can I buy through SEAP / SICAP?
Yes. Public institutions find us in SICAP as S.C. ATTO REGAL S.R.L. Our company details are on the Purchase through SEAP / SICAP page.
How long does delivery take?
We deliver by courier within 24-48 hours.
Can I return the product?
Yes. As a private individual you can return the product within 14 days of receiving it, as the law provides, and you get your money back within 14 days of telling us. Return shipping is paid by the customer. The full terms are on the Return policy page.
