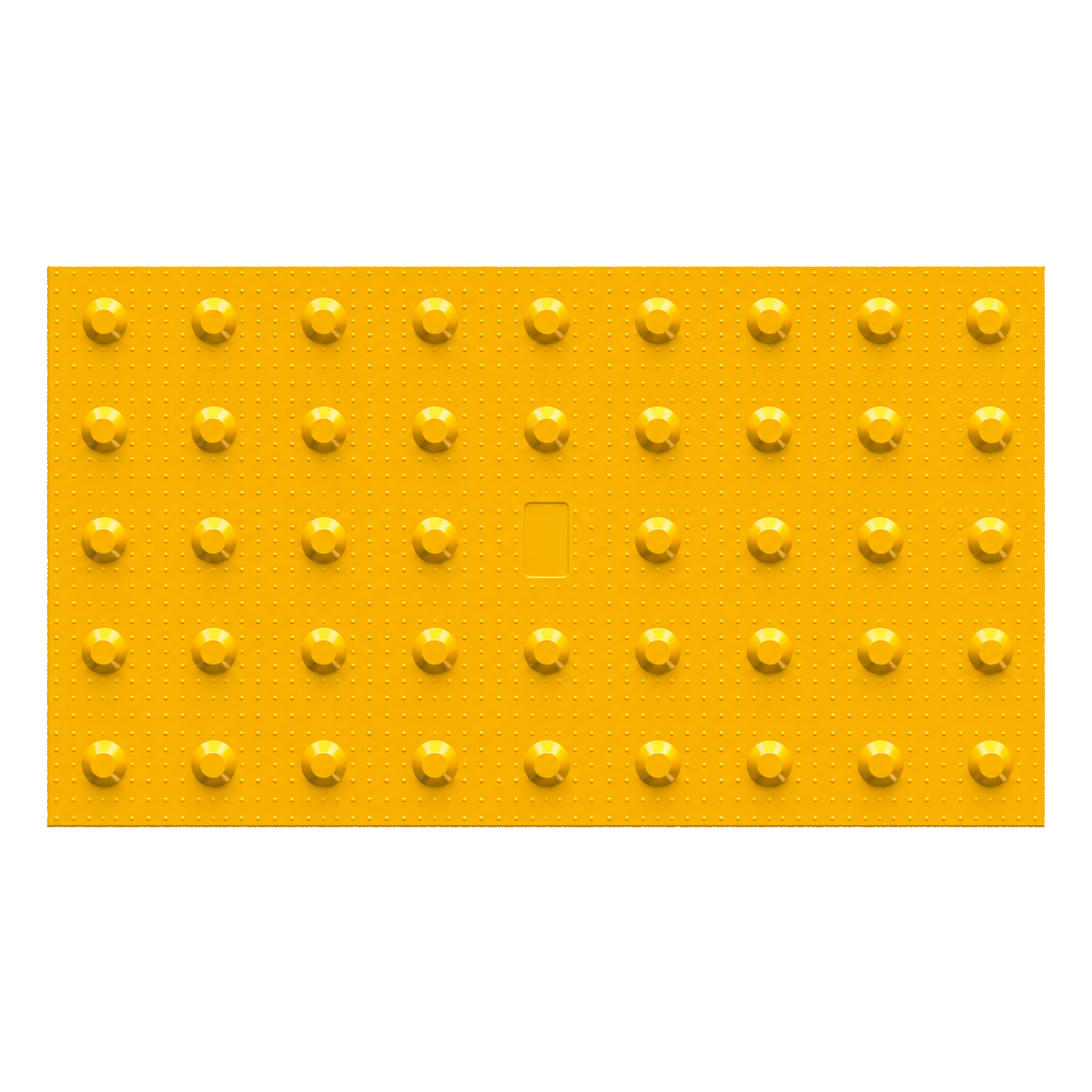

Tactile STOP Tile for the Visually Impaired, Yellow, 30x60x0.8 cm
- Tactile STOP (warning) marking with raised domes.
- TPU, 30 x 60 x 0.8 cm, yellow RAL 1003.
- Non-slip surface.
- Fixed with epoxy adhesive (not included).
General features
| Material | TPU (thermoplastic polyurethane) |
|---|---|
| Color | Yellow (RAL 1003) |
| Length | 60 cm |
| Width | 30 cm |
| Relief height | 4 mm |
| Tactile pattern | 50 studs (5 x 10) |
| Centre-to-centre spacing | 60 mm |
| Service temperature | −20 °C to +60 °C |
| Weight | 0.77 kg |
| Mounting System | Epoxy adhesive (not included) |
| Height | 0.8 cm |
Product description
Yellow tactile STOP marking, 30x60 cm
The STOP marking has raised domes set in rows that are easy to feel underfoot and with a white cane. It marks a place where a blind person must stop: a pedestrian crossing, the top of a staircase, the edge of a platform or a tram line.
Specifications
- TPU (thermoplastic polyurethane), 30 x 60 x 0.8 cm;
- yellow RAL 1003;
- non-slip surface;
- installed with epoxy adhesive, which is not included.
Why the 30x60 format
One tile covers 0.18 m², as much as two 30 x 30 cm tiles. In front of a pedestrian crossing 3 m wide, one row of tiles laid with the long side along the crossing means 5 pieces; two rows, 10.
Together with guidance
The guidance marking in the same format is the ATE 8016. Both are 0.8 cm thick, so the route and the stopping area meet at the same level.
Black version
For light-coloured floors, the same STOP marking comes in black: the ATE 8015.
? Frequently asked questions
What does the tactile STOP marking signal?
A place where a blind person must stop: a pedestrian crossing, the top of a staircase, the edge of a platform or a tram line. The raised domes are easy to feel underfoot and with a white cane.
How many tiles go in front of a 3 m crossing?
One row of tiles laid with the long side along the crossing means 5 pieces; two rows, 10. One tile covers 0.18 m².
Does it sit level with the guidance route?
Yes. The guidance marking in the same format, the ATE 8016, is also 0.8 cm thick, so the route and the stopping area meet at the same level.
Is the adhesive included?
No. It is installed with epoxy adhesive, bought separately.
How much does it weigh?
0.77 kg, at 30 x 60 cm, in yellow RAL 1003 TPU (thermoplastic polyurethane) with a non-slip surface.
Is it available in black?
Yes, for light-coloured floors the same STOP marking is the ATE 8015.
