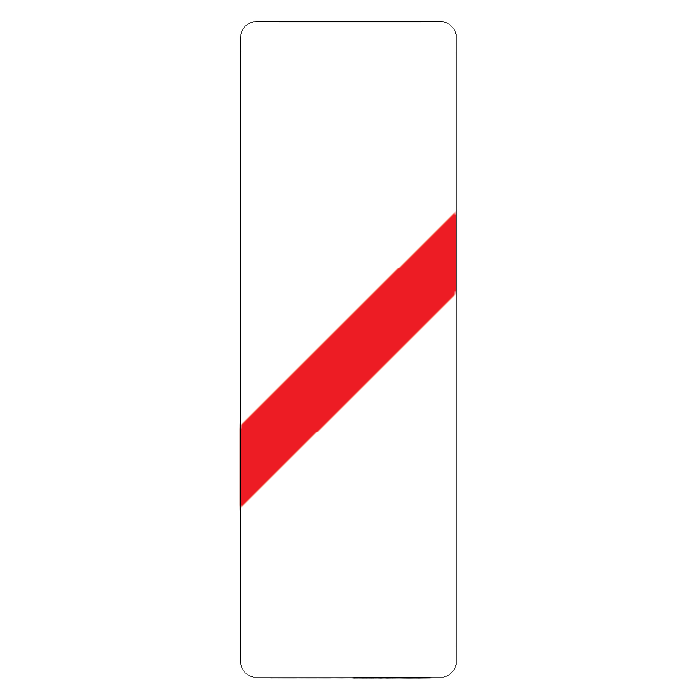

A42 Panel – Level Crossing Countdown Marker, 1 Bar, 33x100 cm, Class I
- A42 Panel – Level Crossing Countdown Marker, to SR 1848-1:2024.
- 33x100 cm panel, white with one red slanted bar, in 1 mm galvanised steel.
- Class I retroreflective sheeting, 7-year service life.
- Fixings included: 3 clamps for Ø48 mm posts and 6 bolts with nuts.
- CE marked; sheeting and paint resistant to UV and weathering.
Complementary products
General features
| SR 1848-1 code | A42 |
|---|---|
| Name in the standard | Level crossing countdown markers |
| Type | Level crossing countdown marker |
| Shape and colours | White, 1 red slanted bar |
| Size | 33 x 100 cm |
| Material | Galvanised steel sheet, 1 mm |
| Construction | Rounded corners, pressed edges, no sharp edges |
| Painting | Electrostatic, UV-resistant paint |
| Retroreflective sheeting | Class I (RA1), UV-resistant |
| Retroreflection (white, 0.2°/5°) | 70 cd/(lx·m²) |
| Sheeting service life | 7 years |
| Weight | 5 kg |
| Fixings included | 3 clamps, 6 bolts with nuts |
| Post diameter | Ø48 mm (Ø60 mm on request) |
| Standards | SR EN 12899-1:2007, SR 1848-1:2024, SR 1848-2:2011, SR 1848-3:2011 |
| Marking | CE |
| Width | 33 cm |
| Height | 100 cm |
Product description

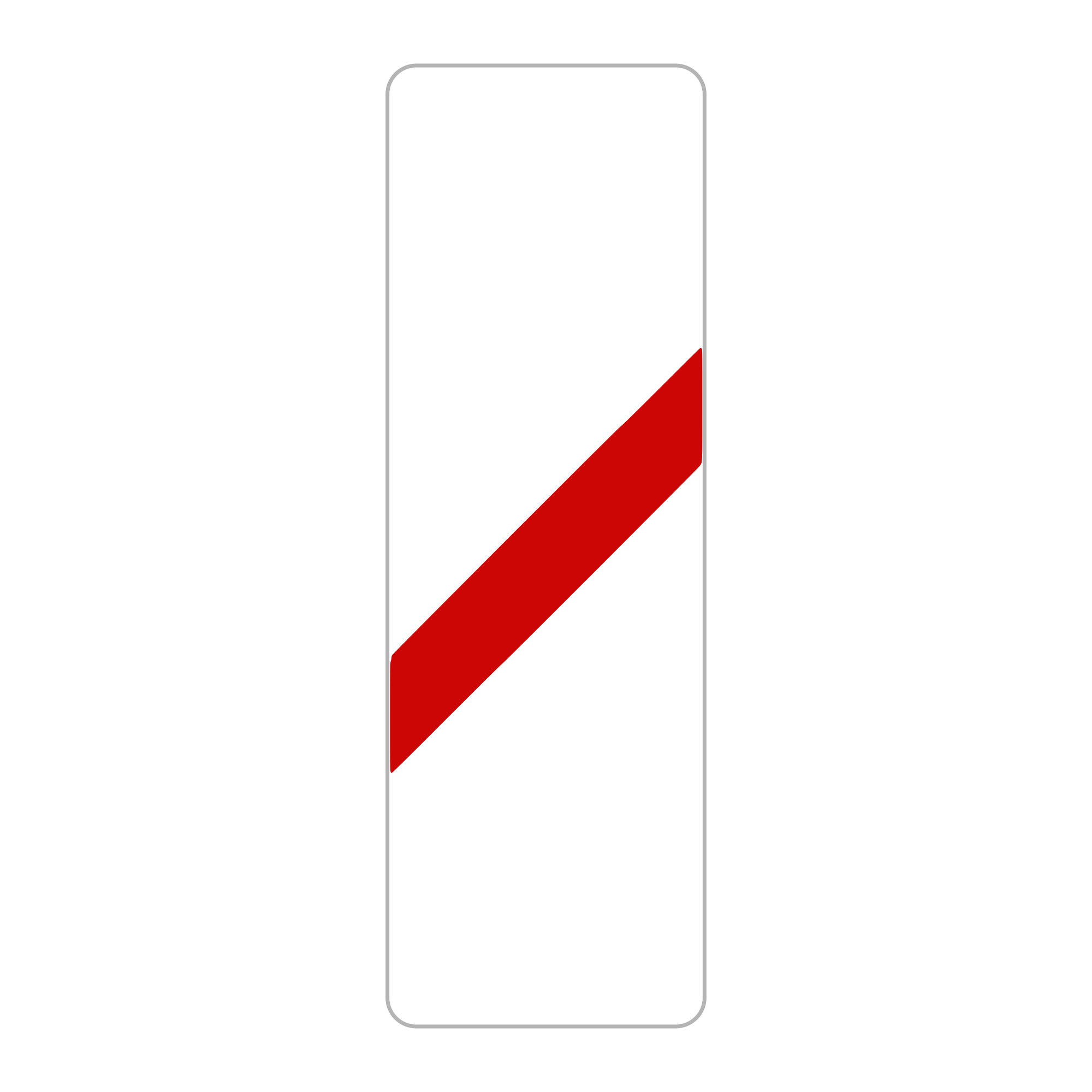

A42 Panel – Level Crossing Countdown Marker, 1 Bar, 33x100 cm, Class I
A42 panels count down the distance to a level crossing: three red bars at 150 m, two at 100 m and one at 50 m. This is the one bar panel.
When class I is used
Class I (RA1) sheeting returns 70 cd/(lx·m²) for white to the driver and has a 7-year service life, enough on roads where headlights are the only light: local, minor and private roads or quiet streets. In areas with street lighting, shop windows, advertising and dense urban traffic, however, SR 1848-2 requires prismatic class 2 or 3 sheeting.
Where it goes, under SR 1848-1:2024
They go on the approach to a level crossing, at distances measured from the barrier or, where there is none, from the nearest rail: 150 m for the 3-bar panel, 100 m for the 2-bar one and 50 m for the 1-bar one. If the panels would fall inside a bend or in an area with poor visibility, they are repeated on the left side as well, together with the A39 or A40. Whichever side they stand on, the slanted bars slope down towards the carriageway. They are not used for industrial railways.
Technical data
- 33x100 cm panel, white with one red slanted bar;
- 1 mm galvanised steel sheet, with rounded corners and pressed edges, no sharp edges;
- electrostatically painted with UV-resistant paint;
- class I retroreflective sheeting (RA1), resistant to UV and weathering, with a 7-year service life;
- weight: 5 kg;
- fixings included: 3 clamps for Ø48 mm posts and 6 bolts with nuts;
- CE marked; compliant with SR EN 12899-1:2007, SR 1848-1:2024, SR 1848-2:2011 and SR 1848-3:2011.
Mounting

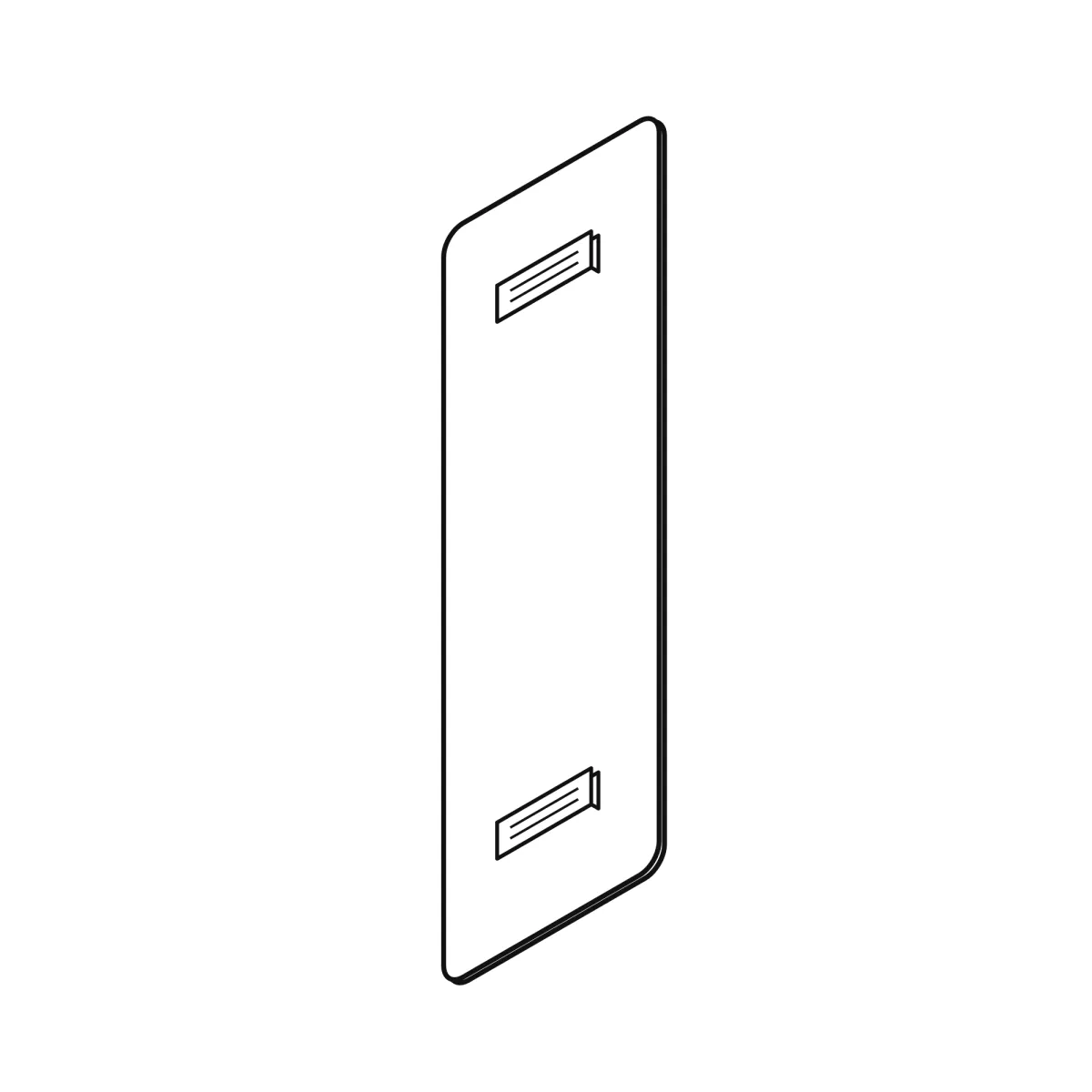

Unlike other signs, the A42 and A43 panels and the A44–A46 markers are mounted low: the bottom edge sits 0.75 m above the edge of the carriageway (SR 1848-2). Fixings for the post are included: 3 clamps for Ø48 mm posts and 6 bolts with nuts. Clamps for Ø60 mm posts are available on request.
The post is ordered separately. For a fixed installation in a concrete foundation: the galvanised Ø48 mm post, 300 cm. For temporary use, with no foundation: the Ø48 mm tripod post, 120 cm. On concrete or paving, where you cannot dig: the Ø60 mm flange post, 300 cm, bolted down; for it, ask for the Ø60 mm clamps when you order.
? Frequently asked questions
Where does the A42 “Level crossing countdown markers” panel go?
They go on the approach to a level crossing, at distances measured from the barrier or, where there is none, from the nearest rail: 150 m for the 3-bar panel, 100 m for the 2-bar one and 50 m for the 1-bar one. If the panels would fall inside a bend or in an area with poor visibility, they are repeated on the left side as well, together with the A39 or A40. Whichever side they stand on, the slanted bars slope down towards the carriageway. They are not used for industrial railways.
How high is it mounted and which fixings come with it?
Lower than other signs: the bottom edge sits 0.75 m above the edge of the carriageway (SR 1848-2). The pack holds 3 clamps for Ø48 mm posts and 6 bolts with nuts; clamps for Ø60 mm posts are available on request.
How long does the reflective sheeting last?
The sheeting is class I (RA1), with a 7-year service life. Under SR 1848-2, during that time retroreflection stays at no less than 80% of the initial minimum value and the sheeting stays bonded over at least 95% of the surface.
How far before the crossing does the panel with one bar go?
50 m before the barrier or, if there is none, before the nearest rail. The three-bar panel stands at 150 m, the two-bar one at 100 m and the one-bar one at 50 m.
When is class I sheeting used?
Where the sign does not compete with other lights: on roads and streets without strong lighting, on local, minor or private roads. In areas with many light sources (street lighting, shop windows, advertising), SR 1848-2 requires prismatic class 2 or 3 sheeting.
Which post should I order?
The post is ordered separately. For a fixed installation in a concrete foundation: the galvanised Ø48 mm post, 300 cm. For temporary use, with no foundation: the Ø48 mm tripod post, 120 cm. On concrete or paving, where you cannot dig: the Ø60 mm flange post, 300 cm, bolted down, for which you ask for the Ø60 mm clamps when you order.
Is the panel CE marked?
Yes. It is CE marked and complies with SR EN 12899-1:2007, the European standard for vertical road signs, and with SR 1848-1:2024, SR 1848-2:2011 and SR 1848-3:2011. The sheeting and the paint resist UV and weathering.
