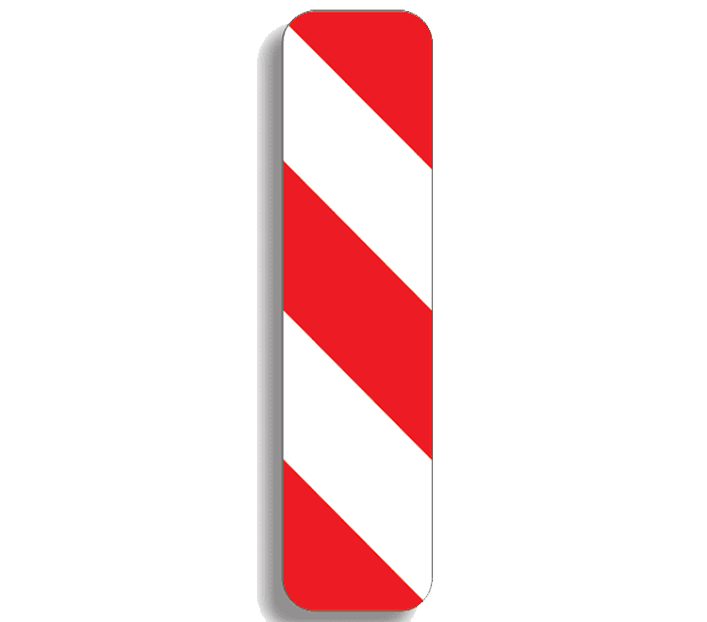

A45 Directional Marker – Pass on the Right, 25x100 cm, Class II
- Marker A45 “Directional marker, pass on the right”, to SR 1848-1:2024.
- 25x100 cm rectangular board with slanted red and white bars, in 1 mm galvanised steel sheet.
- Class II (RA2) prismatic sheeting, guaranteed 10-year service life.
- Fixings included: 3 clamps for Ø48 mm posts and 6 bolts with nuts.
- CE marked; sheeting and paint resistant to UV and weathering.
Complementary products
General features
| SR 1848-1 code | A45 |
|---|---|
| Name in the standard | Directional marker, pass on the right |
| Type | Obstacle marker |
| Shape and colours | 25x100 cm rectangular board with slanted red and white bars |
| Size | 25x100 cm |
| Material | Galvanised steel sheet, 1 mm |
| Construction | Rounded corners, pressed edges, no sharp edges |
| Painting | Electrostatic, UV-resistant paint |
| Retroreflective sheeting | Class II (RA2), prismatic, UV-resistant |
| Retroreflection (white, 0.2°/5°) | 250 cd/(lx·m²) |
| Sheeting service life | 10 years (SR 1848-2) |
| Fixings included | 3 clamps, 6 bolts with nuts |
| Post diameter | Ø48 mm (Ø60 mm on request) |
| Standards | SR EN 12899-1:2007, SR 1848-1:2024, SR 1848-2:2011, SR 1848-3:2011 |
| Marking | CE |
| Weight | 2,5 kg |
| Length | 25 cm |
| Height | 100 cm |
Product description
A45 Directional Marker – Pass on the Right, 25x100 cm, Class II
The A45 marker with class II prismatic sheeting flags an obstacle passed on the right, such as the end of a central divider. Its bars show up better at night than on the class I version of the same size.
Why class II
The difference from class I shows at night: class II (RA2) prismatic sheeting returns three to four times more light, and the gap grows when the sign is mounted at the side, far from the centre of the road. On lit streets with shop windows and advertising, SR 1848-2 requires prismatic class 2 or 3 sheeting. The standard guarantees a 10-year service life for class II sheeting, three years more than for class I.
Where it goes, under SR 1848-1:2024
It is used on roads where obstacles that must be passed around need to be marked. The slanted bars slope down towards the part of the carriageway used to pass the obstacle. It is usually installed together with the D5 “Pass” sign, here the pass-on-the-right version, for example the D5a_II.
Technical data
- 25x100 cm rectangular board with slanted red and white bars;
- 1 mm galvanised steel sheet, with rounded corners and pressed edges, no sharp edges;
- electrostatically painted with UV-resistant paint;
- class II (RA2) prismatic retroreflective sheeting, resistant to UV and weathering, with a guaranteed 10-year service life;
- fixings included: 3 clamps for Ø48 mm posts and 6 bolts with nuts;
- CE marked; compliant with SR EN 12899-1:2007, SR 1848-1:2024, SR 1848-2:2011 and SR 1848-3:2011.
Mounting and size
Fixings for the post are included: 3 clamps for Ø48 mm posts and 6 bolts with nuts; clamps for Ø60 mm posts are available on request.
The post is ordered separately. For a fixed installation in a concrete foundation: the galvanised Ø48 mm post, 300 cm. For temporary use, with no foundation: the Ø48 mm tripod post, 120 cm. On concrete or paving, where you cannot dig: the Ø60 mm flange post, 300 cm, bolted down; for it, ask for the Ø60 mm clamps when you order.
The marker is the same size, 25x100 cm, as the class I sheeting version, the A45; only the sheeting class differs.
? Frequently asked questions
Where does it go?
It is used on roads where obstacles that must be passed around need to be marked. The slanted bars slope down towards the part of the carriageway used to pass the obstacle. It is usually installed together with the D5 “Pass” sign, here the pass-on-the-right version, for example the D5a_II.
How does it differ from the class I sheeting version?
It is the same size as the A45, but with class II (RA2) prismatic sheeting, which returns three to four times more light and has a guaranteed 10-year service life instead of 7.
When is class II sheeting mandatory?
SR 1848-2 requires prismatic class 2 or 3 sheeting in areas with many light sources: street lighting, shop windows, advertising, dense urban areas. Elsewhere, class II is chosen for better visibility on fast roads and where the sign is seen at an angle.
Which fixings come with it?
The pack holds 3 clamps for Ø48 mm posts and 6 bolts with nuts. Clamps for Ø60 mm posts are available on request, a better fit for large signs or windy locations.
Which post should I order?
The post is ordered separately. For a fixed installation in a concrete foundation: the galvanised Ø48 mm post, 300 cm. For temporary use, with no foundation: the Ø48 mm tripod post, 120 cm. On concrete or paving, where you cannot dig: the Ø60 mm flange post, 300 cm, bolted down, for which you ask for the Ø60 mm clamps when you order.
Is the marker CE marked?
Yes. It is CE marked and complies with SR EN 12899-1:2007, the European standard for vertical road signs, and with SR 1848-1:2024, SR 1848-2:2011 and SR 1848-3:2011. The sheeting and the paint resist UV and weathering.
