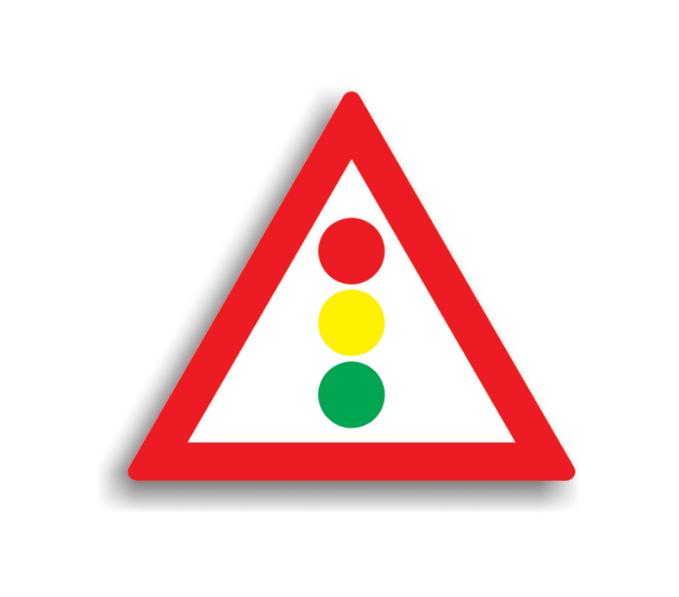

A27 Warning Sign – Traffic Signals, 70 cm, Class I
- Warning sign A27 “Traffic signals”, to SR 1848-1:2024.
- 70 cm triangle in 1 mm galvanised steel sheet, 2 kg.
- Class I retroreflective sheeting, 7-year service life.
- Fixings included: clamps for Ø48 mm posts and bolts with nuts.
Complementary products
General features
| SR 1848-1 code | A27 |
|---|---|
| Name in the standard | Traffic signals |
| Type | Warning road sign |
| Shape and colours | Equilateral triangle, red border, white background, black symbol |
| Size | 70 cm side (normal format) |
| Red border | 60 mm |
| Material | Galvanised steel sheet, 1 mm |
| Construction | Rounded corners, pressed edges, no sharp edges |
| Painting | Electrostatic |
| Retroreflective sheeting | Class I (RA1) |
| Retroreflection (white, 0.2°/5°) | 70 cd/(lx·m²) |
| Sheeting service life | 7 years |
| Weight | 2 kg |
| Fixings included | Clamps and bolts with nuts |
| Post diameter | Ø48 mm (Ø60 mm on request) |
| Standards | SR EN 12899-1:2007, SR 1848-1:2024, SR 1848-2:2011, SR 1848-3:2011 |
| Height | 70 cm |
Product description
A27 Warning Sign – Traffic Signals, 70 cm, Class I
The A27 announces traffic lights where drivers would not expect them, for example on a road outside a built-up area.
Where it goes, under SR 1848-1:2024
In built-up areas it goes before each set of traffic lights only if space allows and the previous lights or junction are more than 1,000 m away. Outside built-up areas it goes at least 100 m before each set of lights.
For national roads there is also a 90 cm version with class II sheeting, the A27_II.
Technical data
- equilateral triangle with a 70 cm side (normal format, SR 1848-2), 60 mm red border, white background, black symbol;
- 1 mm galvanised steel sheet, with rounded corners and pressed edges, no sharp edges;
- electrostatically painted;
- class I retroreflective sheeting (RA1), with a 7-year service life;
- weight: 2 kg;
- fixings included: clamps for Ø48 mm posts and bolts with nuts;
- compliant with SR EN 12899-1:2007, SR 1848-1:2024, SR 1848-2:2011 and SR 1848-3:2011.
Mounting
The pack also holds clamps for Ø48 mm posts and bolts with nuts for mounting on a post; clamps for Ø60 mm posts are available on request. The correct height, measured at the bottom edge, is 1.50–2.50 m above the road or kerb, and the sign stands 0.50–2.0 m from the edge of the road platform. Choose a spot where it can be seen from 50 m in built-up areas and from 100 m on roads outside them.
The 70 cm triangle is the normal format in SR 1848-2, meant for county and local roads, streets and private roads open to public traffic. National roads call for large 90 cm signs, and motorways for very large 120 cm ones.
? Frequently asked questions
Where does the A27 “Traffic signals” sign go?
In built-up areas it goes before each set of traffic lights only if space allows and the previous lights or junction are more than 1,000 m away. Outside built-up areas it goes at least 100 m before each set of lights.
Is the 70 cm triangle right for a county road?
Yes. 70 cm is the normal format in SR 1848-2, required on county and local roads, streets and private roads open to public traffic. National roads call for 90 cm and motorways for 120 cm. The 90 cm version with class II sheeting is the A27_II.
How high is it mounted and which fixings come with it?
The bottom edge goes 1.50–2.50 m above the road or kerb, and the inner edge 0.50–2.0 m from the road platform. The pack holds clamps for Ø48 mm posts and bolts with nuts; clamps for Ø60 mm posts are available on request.
How long does the reflective sheeting last?
The sheeting is class I (RA1), with a 7-year service life. Under SR 1848-2, during that time retroreflection stays at no less than 80% of the initial minimum value and the sheeting stays bonded over at least 95% of the surface.
Does the A27 go before every set of traffic lights?
Outside built-up areas, yes, at least 100 m before them. In built-up areas, only if space allows and the previous lights or junction are more than 1,000 m away.
Ordering and delivery
Can I order as a private individual?
Yes. You order directly on the site, as an individual or a company, and pay by card or cash on delivery.
Do I get an invoice?
Yes. Every order comes with a tax invoice, issued to an individual or a company.
Can I buy through SEAP / SICAP?
Yes. Public institutions find us in SICAP as S.C. ATTO REGAL S.R.L. Our company details are on the Purchase through SEAP / SICAP page.
How long does delivery take?
We deliver by courier within 24-48 hours.
Can I return the product?
Yes. As a private individual you can return the product within 14 days of receiving it, as the law provides, and you get your money back within 14 days of telling us. Return shipping is paid by the customer. The full terms are on the Return policy page.
